12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance
12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance

Gambar besar :  12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance

Detail produk:
Tempat asal: Cina
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 buah
Harga: 0.35
Kemasan rincian: Packing standar
Waktu pengiriman: 3-5days
Syarat-syarat pembayaran: <html xmlns="http://www.w3.org/1999/xhtml"> <head> <script>document.title='
Menyediakan kemampuan: 80000pcs / minggu
Kontak
Detil Deskripsi produk
Nama Produk: Kuncir bundel 12-inti Model nomor.: LC/APC 12 inti mode tunggal
Dapat dipertukarkan: ≤0ddB Mengembalikan kerugian: ≥60dB
Waktu kawin: > 1000

12-core bundled pigtail fiber optic cable LC/APC 12 core single-mode good flexibility and bending resistance pigtail

Product Name 12-core bundle pigtail
Model No. LC/APC 12 core single-mode
Insertion loss ≤0.2DB
Return loss ≥60DB
Mating times >1000

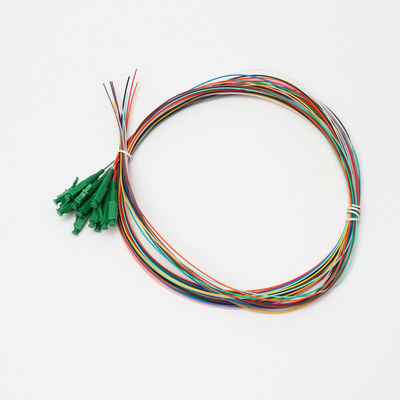

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 0

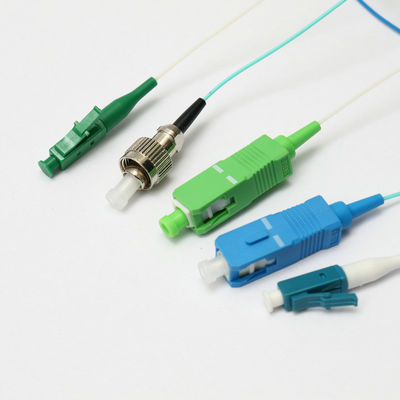

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 1

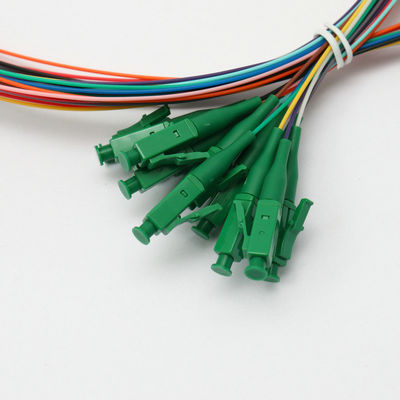

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 2

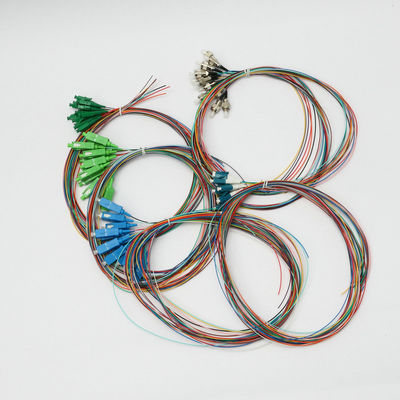

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 3



OEM/ODM Accepted

List No. Item Model Test requirements SM MM
PC UPC APC PC UPC
1 IL LC/SC/FC/ST/MU/E2000 (Connect with standard plug and standard adapter)
100%test		 ≤0.3 ≤0.3 ≤0.35 ≤0.3 ≤0.3
2 RL LC/SC/FC/ST/MU/E2000 (Connect with standard plug and standard adapter)
10% sampling rate		 ≥50dB ≥50dB ≥60dB ≥25dB
Field connector, Cold splice (Connect with standard plug and standard adapter) Field connector:Embedded:UPC≥40dB,APC≥50dB
Hot melt type:UPC≥50dB,APC≥60dB
Cold splice:≥40dB
3 3D pass rate LC/SC/FC/ST/MU/E2000 Physical inspection ≥85%
4 End face standard LC/SC/FC/ST/MU/E2000 Physical inspection No defects in area A
Allow zone B ≤1μm scratches, ≤2μm spots, and the total number of scratches plus spots is less than 5.
Allow C zone ≤2μm scratches, ≤2μm spots, unlimited number, ≤3μm aprons		 No defects in area A
Allow zone B ≤2μm scratches, ≤3μm spots, and the total number of scratches plus spots is less than 5.
Allow C zone ≤3μm scratches, ≤3μm spots, unlimited number, ≤5μm aprons
5 Appearance requirements Field connectors, cold spice, adapters, fiber optic connectors Visual inspection (refer to swatches and sealing samples) Product appearance and corresponding design, manufacturing requirements are everywhere: the appearance should be smooth, clean, free of oil, burrs, no scars and cracks, bright color, good consistency, and the components must be tight and flat; the appearance of the optical cable should be smooth and bright. No impurity, no damage, clear printing, color conforms to product requirements
6 Material requirements adapters Physical inspection The adaptor should use ceramic sleeves, the outer shell of the adaptor and other plastic parts should be flame-retardant, and the metal material should use HPb59-1 copper
7 Tensile test {pigtail (cable) or connector with fiber below Φ1.0mm is not applicable, adapter is not applicable} MTP/MPO Test conditions: A) Load: nN: B) Load time: 10 minutes: C) Load rate: 50N/min<rate<250N/minute; D) Distance from the point of load to the plug: L=22~28CM.
Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.1dB (MU<0.1dB, MTP/MPO<0.3dB) Return loss change <5dB		 ≥50
FC/SC/E2000 ≥50
MU/LC ≥70
  LC ≥90
Leather cable ≥50
Hot melt type ≥40(Leather cable, 2.0 soft optical cable)
≥50(3.0 soft optical cable)
Embedded type ≥30(Leather cable, 2.0 soft optical cable)
≥50(3.0 soft optical cable)
Cold splice ≥4(0.125,0.25 optic fiber)
≥10N(0.9 optical cable)
≥30N(Leather cable)
8 Tensile strength of adapter locking mechanism SC Test conditions: A) Load: nN: B) Load time: 10 minutes (MU load 1 minute); C) Load rate: 50N/minute; <speed<250N/minute; D) Distance from the point of load to the plug: L =22~28cm.
Requirements after the test: A) There should be no mechanical damage such as deformation, falling off, and loosening. B) Optical performance conforms to: Insertion loss change <0.2dB, Return loss change <5dB		 ≥50
MPO
LC ≥80
MU

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 4

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 5

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 6

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 7

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 8

12 Core Bundled Pigtail Fiber Optic Cable LC/APC Singlemode Good Flexibility And Bending Resistance 9

Label:

Kabel Serat Optik Mode Tunggal 12 Inti,

Kabel Serat Optik APC UPC,

Bundled Pigtail G652D
